Features of Felt

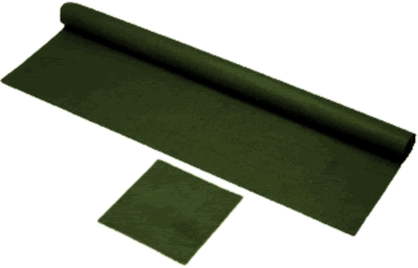

Thunderon® Felt is made from an organic conductive fiber which copper sulfide is chemically bonded to. It is unwoven cloth that has the property of safe elimination of electrostatic charges through corona discharge.
Applications of Felt
● Static removal material for electronic equipment.
● As an electrostatic countermeasure in resin moulding factories, film factories and precision machine assembly factories.
● As an earth for electronic equipment and home electronic appliances. (Either grounded or non-grounded)
【Size】
Width: 1,870 mm, Length 1.0 m
Width: 1,870 mm, Length 5.0 m
Width: 1,870 mm, Length 10.0 m
● As an electrostatic countermeasure in resin moulding factories, film factories and precision machine assembly factories.
● As an earth for electronic equipment and home electronic appliances. (Either grounded or non-grounded)
【Size】
Width: 1,870 mm, Length 1.0 m
Width: 1,870 mm, Length 5.0 m
Width: 1,870 mm, Length 10.0 m
※【 Notes on Use 】
- Thunderon® eliminates static electricity instantaneously by corona discharge, but if static electricity is being generated repeatedly, its ability to eliminate the static decreases. Please be sure to use grounding.
- Thunderon® is conductive (a semiconductor), but it is not to be used as a conducting wire. Do not allow Thunderon® to come into contact with an electric power source.
- Thunderon® will heat up if irradiated with high-frequency or microwave radiation. Please avoid this kind of irradiation.
- The use of Thunderon® should be avoided if eczema, rashes or other skin abnormalities occur.
- If soiled, wash Thunderon® with a neutral detergent. Do not use bleach or oxidizing agents.
